High-Speed Push-Pull Industrial Ventilation Fan
The High-Speed Push-Pull Industrial Ventilation Fan features an automated shutter mechanism for effortless operation. Its stainless steel blade is precision-stamped for durability, smooth performance, and reduced noise, ensuring extended service life without deformation or cracking. The uniquely designed concave housing facilitates safe transportation, easy installation, and an aesthetically streamlined appearance.
PRODUCT DETAILS
Bearing
High-Speed Push-Pull Industrial Ventilation Fan, featuring imported double-row bearings with a specialized waterproof design, ensures robust performance, quiet operation, maintenance-free use, and an extended service life.
Technical Parameter
| Model specifications | Diameter blades(mm) | Frequency(Hz) | Motor rotational speed(rpm) | Air flow (m³/h) | Import power(W) | Noise decibels | Rated voltage(V) | Height(mm) | Width(mm) | Thickness(mm) | |
| WJ-TL-1000 | 910(36in) | 50 | ≥1400 | 35000 | 750 | ≤64 | 380 | 1000 | 1000 | 450 | |
| WJ-TL-1380 | 1270(50in) | 50 | ≥1400 | 48000 | 1100 | ≤64 | 380 | 1380 | 1380 | 450 | |
Due to continuous improvements,if there were many changes of parameters,we would not make advising.

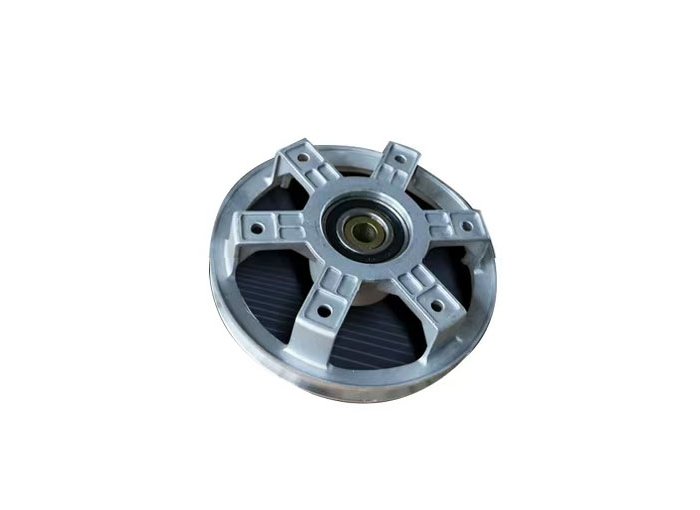

Push-pull Alumium Wheel
The housing of the High-Speed Push-Pull Industrial Ventilation Fan, crafted from high-strength aluminum-magnesium alloy through die-casting, undergoes specialized blast-sanding treatment to relieve internal stress, enhancing structural rigidity and operational stability.Key advantages include lightweight construction, minimal vibration, and a refined aesthetic appearance.

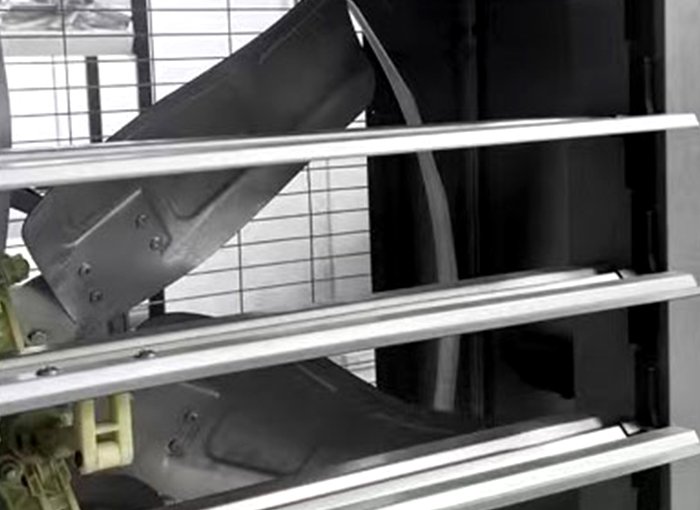

Fan Blade
The fan blades of the High-Speed Push-Pull Industrial Ventilation Fan are precision-crafted from 1.2mm Krupp stainless steel, delivering high airflow efficiency while ensuring exceptional durability, deformation resistance, and dust prevention with an aesthetically refined finish.

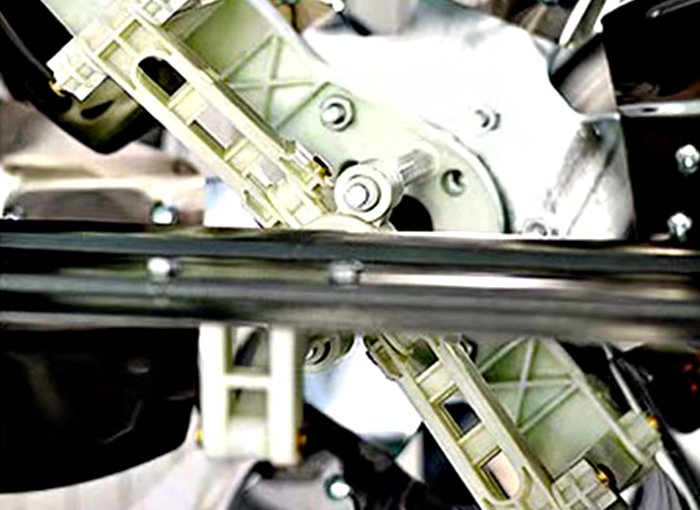

Centrifugal System
The guide system of the High-Speed Push-Pull Industrial Ventilation Fan is constructed with a high-quality Nylon PA66 body and a 304 stainless steel rod featuring a specialized outer coating, delivering high strength, corrosion resistance, and reduced friction. This design ensures the shutters of the High-Speed Push-Pull Industrial Ventilation Fan open fully to a 90-degree position, minimizing air resistance and maximizing airflow volume.

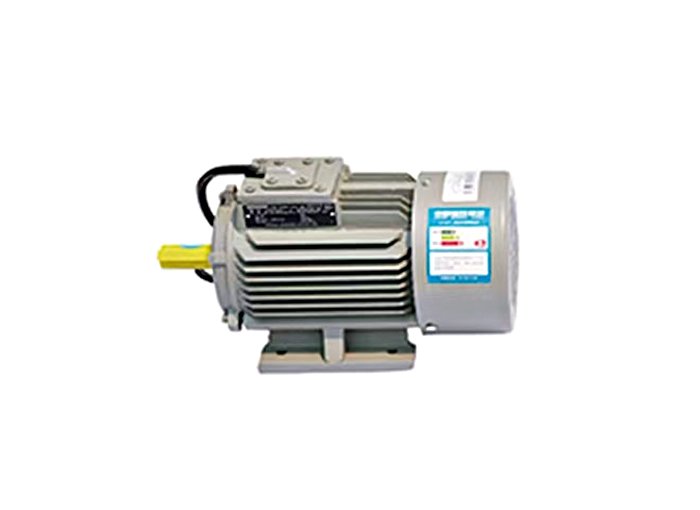

Motor
The motor of the High-Speed Push-Pull Industrial Ventilation Fan is wound with 100% pure copper wire for high efficiency and energy-saving operation. It features an IP55 protection grade and F-class insulation, with customizable voltage and frequency. Options include well-known Chinese motors or Siemens motors.
