Suspended Cattle Barn Fan
The Suspended Cattle Barn Fan enables dual optimization of both airflow performance and coverage area. It supports multi-angle installation for flexible positioning to suit various pastoral requirements, ensuring safe and reliable operation. The unit effectively enhances air circulation, providing powerful ventilation and cooling.
PRODUCT DETAILS
Belt Pulley
The Suspended Cattle Barn Fan is crafted from high-strength die-cast aluminum-magnesium alloy and treated with blast-sanding to relieve internal stress, offering enhanced rigidity and stability. Key advantages include lightweight construction, low vibration, and a sleek appearance.
Bearing
The Suspended Cattle Barn Fan is crafted from high-strength die-cast aluminum-magnesium alloy and treated with blast-sanding to relieve internal stress, offering enhanced rigidity and stability. Key advantages include lightweight construction, low vibration, and a sleek appearance.
Hanging Rings
The Suspended Cattle Barn Fan is equipped with imported double-row bearings featuring a specialized waterproof design, delivering exceptional strength, quiet operation, maintenance-free performance, and extended service life.
Technical Parameter
| Model specifications | Diameter blades(mm) | Blades rotational apeed | Motor rotational speed (rpm) | Air flow (m³/h) | Total pressure(Pa) | Noise decibels | Import power(W) | Rated voltage(V) | Height(mm) | Width(mm) | Thickness(mm) |
| WJ-NS-1000 | 900 | 600 | 600 | 23000 | 56 | ≤60 | 550(10P) | 380 | 1000 | 1000 | 350 |
| WJ-NS-1100 | 1000 | 550 | 550 | 32500 | 56 | ≤60 | 550(10P) | 380 | 1100 | 1100 | 350 |
| WJ-NS-1220 | 1100 | 440 | 440 | 38000 | 56 | ≤60 | 750(12P) | 380 | 1220 | 1220 | 350 |
| WJ-NS-1380 | 1250 | 440 | 440 | 42000 | 56 | ≤60 | 1100(12P) | 380 | 1380 | 1380 | 350 |
Due to continuous improvements,if there were many changes of parameters,we wouid not make advising.

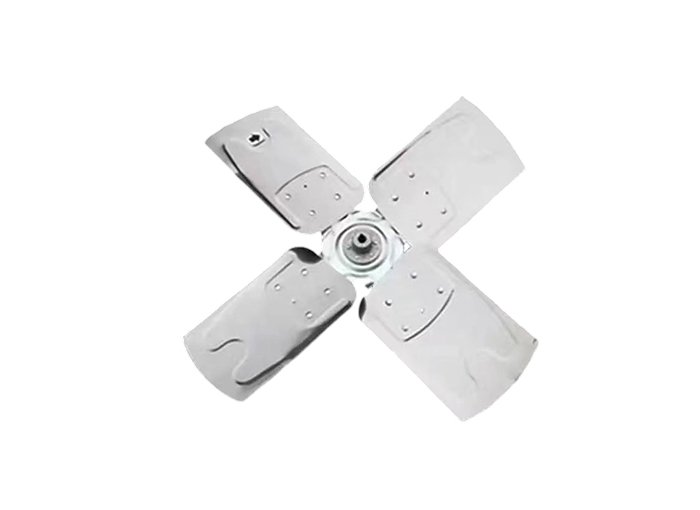

Fan Blades
Material : 430 stainless steel, thickness 1.2mm
Diameter: 1250mm1100mm 1000mm 900mm
Advantage: Large air flow, no deformation, no fracture, no dust, attractive and durable.

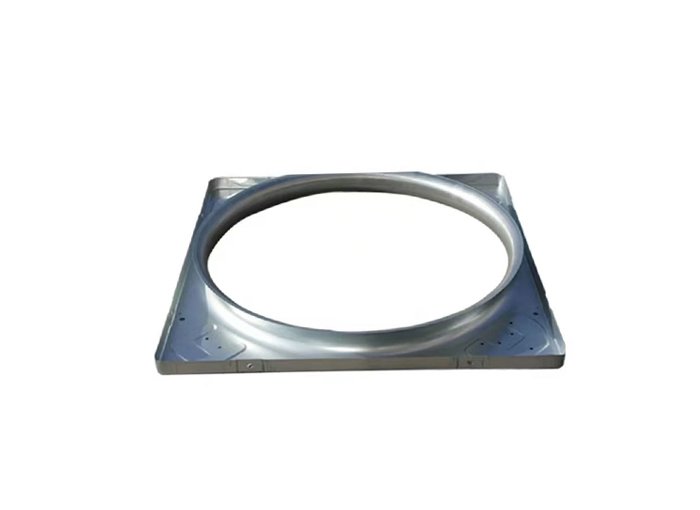

Round Frame
The frame of the Suspended Cattle Barn Fan is constructed from hot-dip galvanized sheet with a zinc coating of 275g, delivering significantly enhanced corrosion resistance.

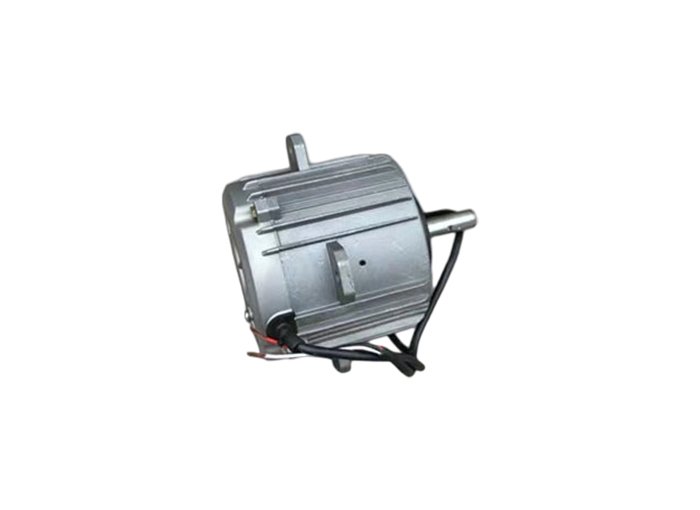

Motor
The Suspended Cattle Barn Fan offers customizable motor voltage and frequency. The specially designed branded motor for the fan features built-in phase-loss protection, automatically cutting off power during electricity shortages.
