Horn Cone Fan
The Horn Cone Fan is designed for poorly ventilated areas. It rapidly expels heat from stagnant breeding environments using negative pressure, while simultaneously drawing in fresh outdoor air. This ensures efficient ventilation, cooling, and environmental improvement.
PRODUCT DETAILS
The Horn Cone Fan features an advanced front double-door opening mechanism, ensuring minimal wind resistance, excellent sealing, and high operational efficiency. The extended cone design of the Horn Cone Fan further enhances exhaust performance.
Technical Parameter
| Model specifications | Blade diameter (mm) | Blades rotatonal speed(rpm) | Motor rotatonal speed(rpm) | Air flow(m³/h) | Total pressure(pa) | Noise decibels | Import power(W) | Rated voltage(V) | High(mm) | Width(mm) | Thick(mm) |
| WJ-LF-1100 | 1000 | 600 | 1400 | 32500 | 70 | ≤70 | 750 | 380 | 1100 | 1100 | 450 |
| WJ-LF-1380 | 1250 | 439 | 1400 | 44000 | 80 | ≤70 | 1100 | 380 | 1380 | 1380 | 450 |
Due to continuous improvements,i there were many changes ot parameters,we would not make advising.

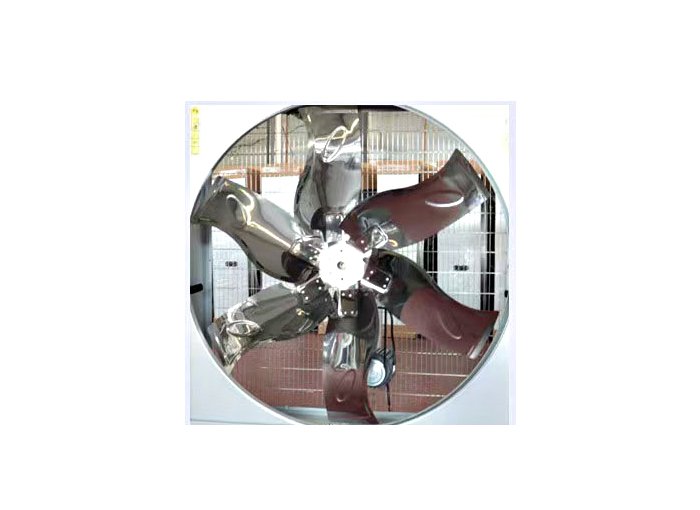

Fan Blade
The fan blades of the Horn Cone Fan are crafted from punch-formed Krupp stainless steel, delivering substantial airflow while resisting deformation, breakage, and dust. Combining durability with a refined appearance, the fan blades feature a 1.2mm thickness and BA-grade surface finish.

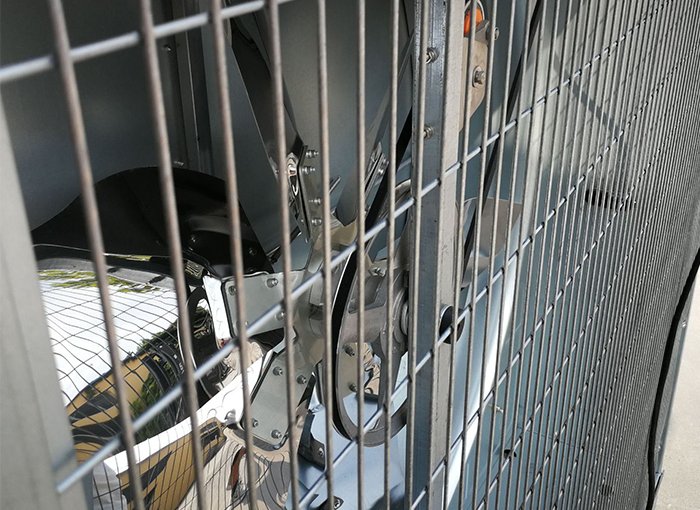

Frame
The frame of the Horn Cone Fan is manufactured using advanced automated processing for seamless single-piece forming. With an extra-thick galvanized coating (275g/㎡), the Horn Cone Fan delivers superior corrosion resistance.

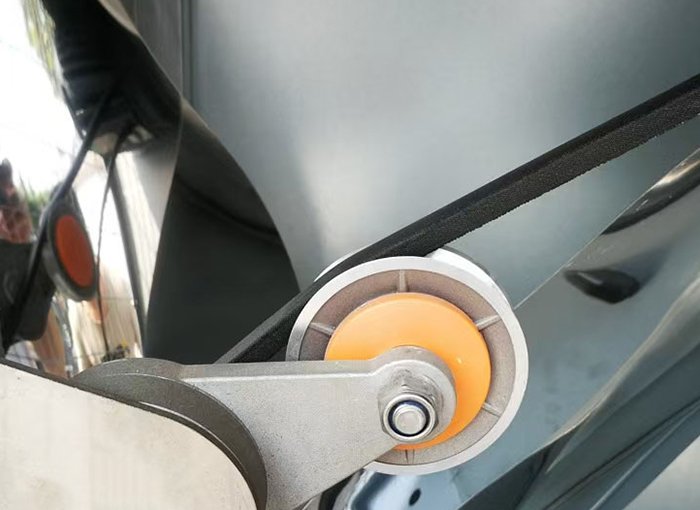

V-groove Pulley
The V-groove pulley of the Horn Cone Fan is crafted from aviation aluminum alloy using hot-press casting, offering lightweight construction, high strength, excellent toughness, and fracture resistance.
Belt
The Horn Cone Fan utilizes a dual-support belt drive mechanism paired with a high-efficiency, energy-saving motor. It holds 3C certification and features IP54 protection along with F-class insulation.
