The Exhaust Fan Light Trap is a blackout light trap designed for light-deprivation greenhouses. This permeable wall panel enables airflow while blocking light, making it suitable for both exhaust and intake applications.
Exhaust Fan Light Trap
The Exhaust Fan Light Trap is a blackout light trap designed for light-deprivation greenhouses. This permeable wall panel enables airflow while blocking light, making it suitable for both exhaust and intake applications.
PRODUCT DETAILS
Vanes
The vanes of the Exhaust Fan Light Trap are constructed from high-quality plastic as a single unit for easy disassembly and cleaning. A lock-catch fastener ensures a secure connection with increased contact area. The optimized double-wave design enhances shading and reduces air resistance, with a standard vane spacing of 30mm.
Tile
Injection moulding, smooth appearance, no burrs, custom sizes available.
Locking Fixture
The interlocking tile design of the Exhaust Fan Light Trap increases the stress area for enhanced structural stability.
Technical Parameter
| Type | Size(mm) | Weight(kg) |
| 50"WJ-LT | 1400x1400x250 | 59 |
| 36"WJ-LT | 1150x1150x250 | 27 |
| Air-Inlet on side wall | 630x250x250 | 11 |

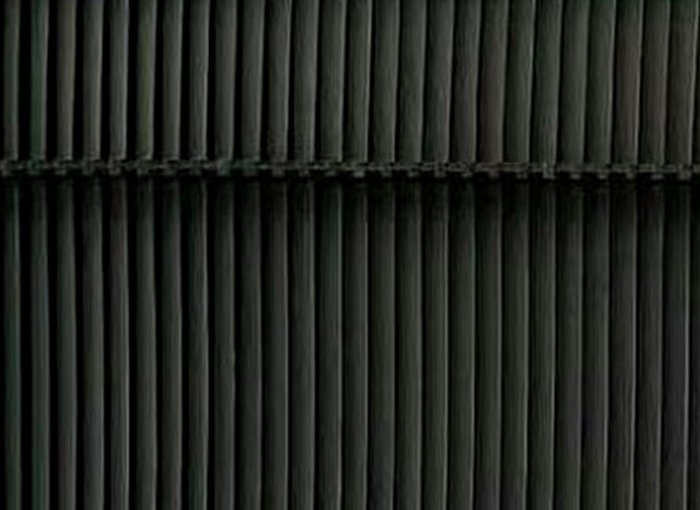

Material
The injection-molded light trap of the Exhaust Fan Light Trap is made of non-glare PVC material, offering durability along with resistance to sunlight and chemical corrosion.

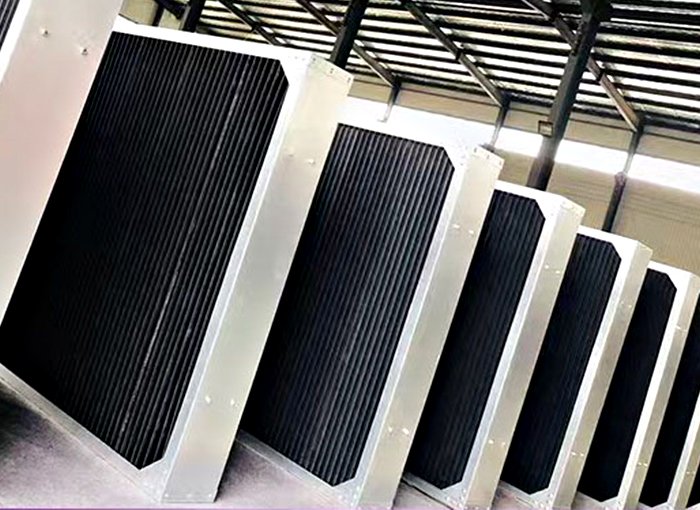

Frame
The Exhaust Fan Light Trap offers frame options for customers, including stainless steel sheet or galvanized sheet.
