The Evaporative Air Cooler features an open-type water distributor, ensuring smooth water flow and preventing jamming.
The Evaporative Air Cooler is equipped with an aluminum motor cabinet and a motor wound with 100% copper wire for longer life.
Evaporative Air Cooler
The Evaporative Air Cooler utilizes a high-pressure blower to draw outdoor air through moistened filter pads. This process removes airborne impurities and reduces temperature via water evaporation. The resulting cooled air is then directed into the building. A pump continuously circulates water to the top of the pads, allowing it to flow evenly downward.
PRODUCT DETAILS
The cabinet of the Evaporative Air Cooler is constructed from 100% new-generation PP material, offering UV resistance, corrosion resistance, anti-aging properties, and structural stability.
The Evaporative Air Cooler features an open-type water distributor, ensuring smooth water flow and preventing jamming.
The Evaporative Air Cooler is equipped with an aluminum motor cabinet and a motor wound with 100% copper wire for longer life.
Technical Parameter
Air volume | Covering area | Power | Voltage | Fan type | Water consumption | Noise | Dropper dimension (Lx W) | Dimension (LxWxH)) | Weight |
18000m³/H | 120-150㎡ | 1.1KW | 380v/50HZ | Axial | 20-25Kg/h | 56-71(dB) | 670x670mm | 1100x1100x900mm | 45Kg |

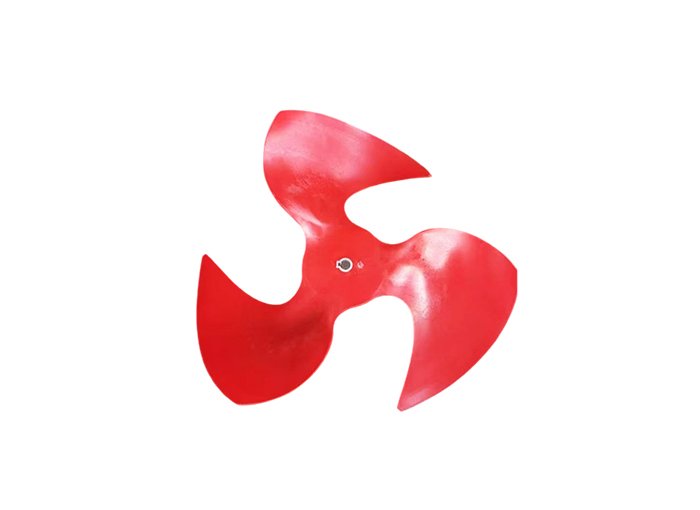

Fan Blade
The Evaporative Air Cooler features smooth fan blades, ensuring low noise and making it especially suitable for commercial areas.

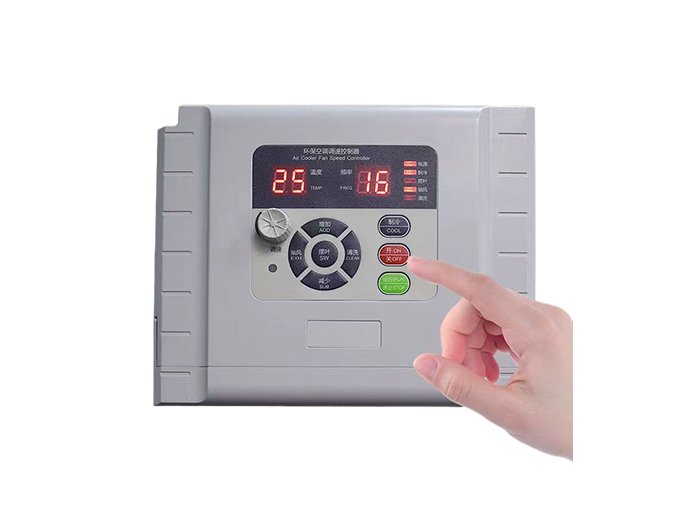

Controller
The Evaporative Air Cooler features an intelligent frequency controller with a multi-function LCD, wall-mounted and remote control options for flexible operation, supporting customization.

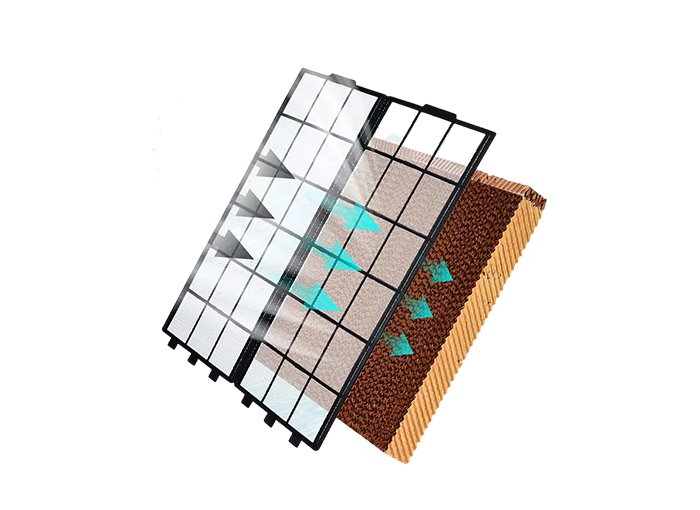

Dust Screen
The Evaporative Air Cooler is equipped with an external dust screen that can be easily removed and cleaned.

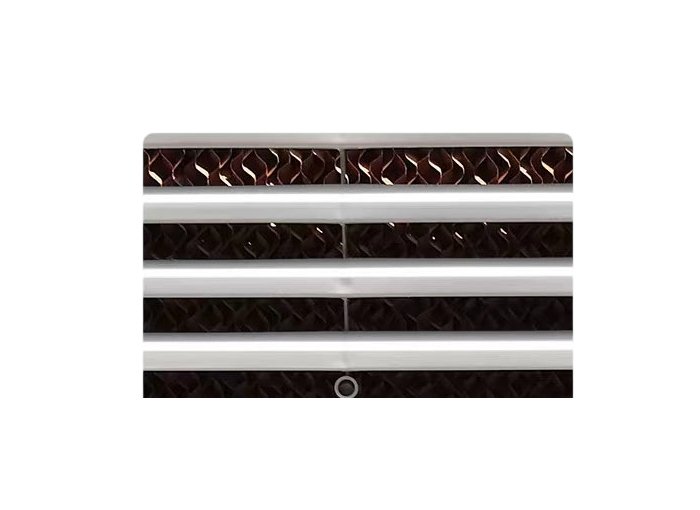

Cooling Pad
The Evaporative Air Cooler features a high-efficiency cooling pad that delivers effective cooling performance and is easy to clean and maintain.

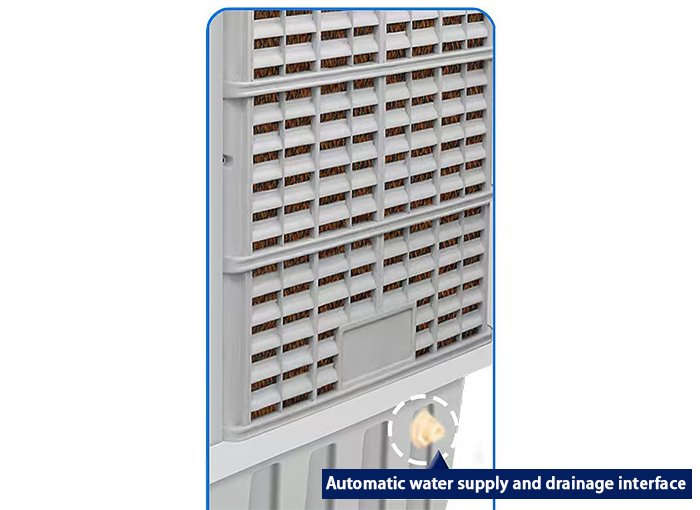

Automatic Water Supply
The Evaporative Air Cooler features an automatic water supply system that supports customization during low-water conditions. The Evaporative Air Cooler also includes an advanced automatic draining pump, replacing traditional drain valves for extended durability.
